EF/Theta 921A HV Micro Coreless Servo

** PLEASE NOTE THE EF/THETA 921A REQUIRES A MICRO 25T COMPATIBLE SERVO ARM **



EF/Theta 921A HV Micro Servo -Ideal for 48-49" 3D aircraft and other Micro applications.

• Incredible torque combined with high speed
• High-efficiency brushless motor for smooth operation and efficiency
• 100% high voltage compatible
• Excellent centering
• Compatible with Futaba-type horns/arms
• Extremely lightweight
• All aluminum case
• All metal gears

Specifications:

• Speed:
• @6.0V: 0.12 sec/60°
• @7.4V: 0.10 sec/60°
• @8.4V: 0.09 sec/60°
• Torque:
• @6.0V: 91.65oz-in (6.6kg-cm)
• @7.4V: 108.32oz-in (7.8kg-cm)
• @8.4V: 119.43oz-in (8.6kg-cm)
• Motor: Brushless
• Operating Voltage: 6.0V-8.4V
• Operating Temperature: -

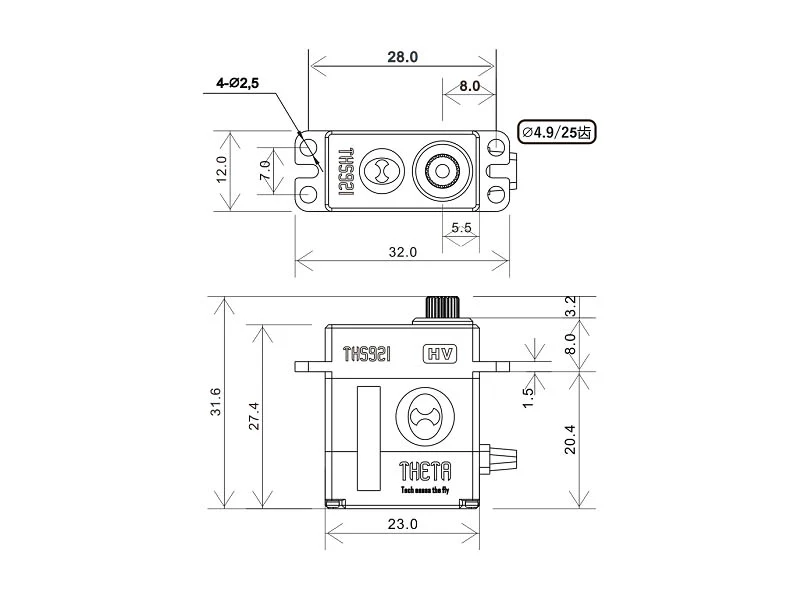

• Dimensions: 27.4x23x12mm
• Weight: 21g
• Operating Spline: MINI 25T
